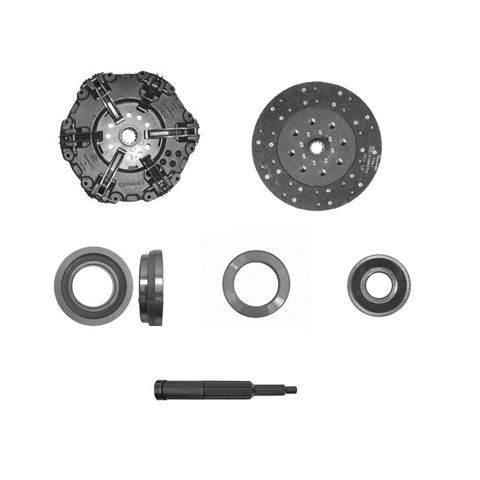

80-90 Hesston Tractor 11" Dual Stage Clutch Kit Assembly

This Is a New 11” Dual Stage Clutch Kit Assembly

11’’ X 1-9/16’’ 14 Spline Hub 6 Lever Belleville Dual Stage Pressure Plate

11’’ Woven Clutch Disc With 1” 10 Spline Hub

Release Bearing OD 3.550” ID 1.968” Thickness .845”

Release Bearing OD 4.330” ID 2.758” Thickness 0.785”

Pilot Bearing OD 1.850” ID 669” Thickness 0.550”

Alignment Tool Large Spline 1-9/16” 14 Spline

Small Spline 1” 10 Spline

Pilot Diameter 0.669”
