530 Farm Trac Tractor 11" Dual Stage Clutch Kit Assembly
$595.00

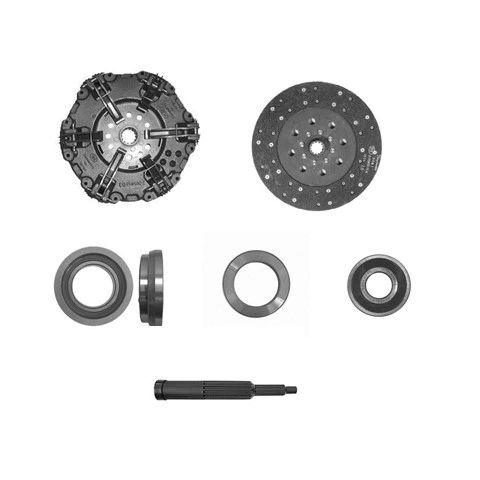

This Is a New 11” Dual Stage Clutch Kit Assembly
11’’ X 1-9/16’’ 14 Spline Hub 6 Lever Belleville Dual Stage Pressure Plate
11’’ Woven Clutch Disc With 1” 10 Spline Hub
Release Bearing OD 3.550” ID 1.968” Thickness .845”
Release Bearing OD 4.330” ID 2.758” Thickness 0.785”
Pilot Bearing OD 1.850” ID 669” Thickness 0.550”
Alignment Tool Large Spline 1-9/16” 14 Spline
Small Spline 1” 10 Spline
Pilot Diameter 0.669”
